Item No :
SX-CWR2/BPOrder(MOQ) :
1 containerPayment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
GuangzhouLead Time :
25 days

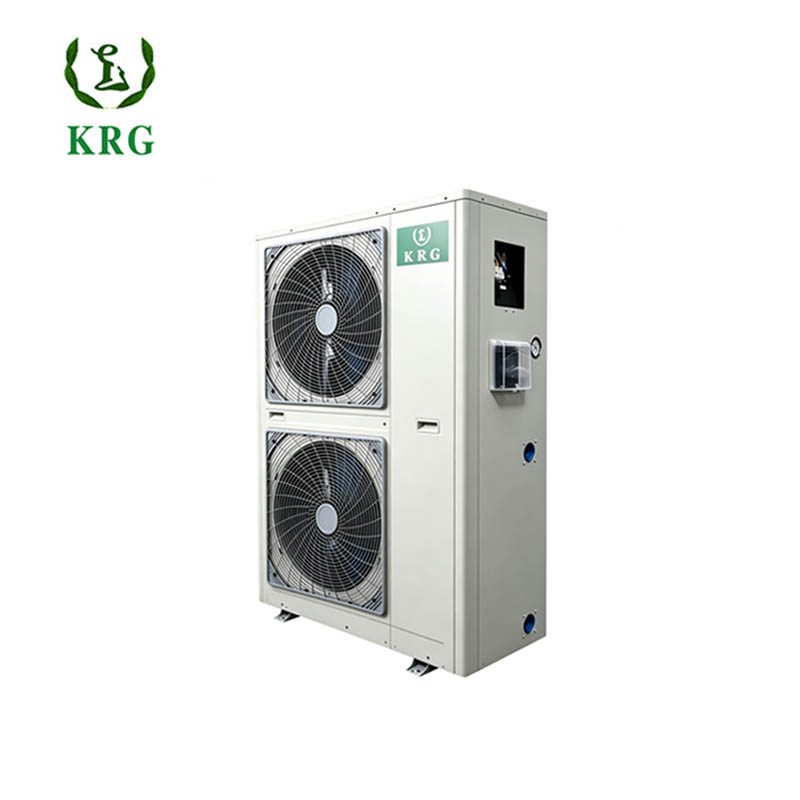

Compared with traditional heating equipment utilizing electricity to generate heat directly, the heat pump units consume less energy to drive the heating system. The system can absorb free low-grade thermal energy from the air and convert to high-grade thermal energy like space heating, hot water, drying, etc.

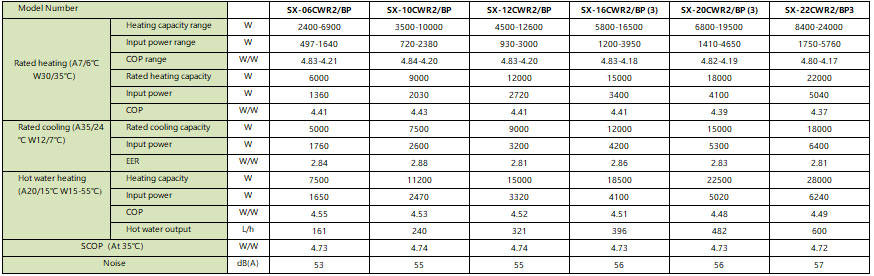

| Model (Room temperature) | SX-06CWR2/BP | SX-10CWR2/BP | SX-12CWR2/BP | SX-16CWR2/BP (3) | SX-20CWR2/BP (3) | SX-22CWR2/BP3 | |
| Rated heating (A7/6℃ W30/35℃) | Heating capacity (W) | 2400-6900 | 3500-10000 | 4500-12600 | 5800-16500 | 6800-19500 | 8400-24000 |
| Input power range (W) | 497-1640 | 720-2380 | 930-3000 | 1200-3950 | 1410-4650 | 1750-5760 | |
| COP range (W/W) | 4.83-4.21 | 4.84-4.20 | 4.83-4.20 | 4.83-4.18 | 4.82-4.19 | 4.80-4.17 | |
| Rated heating capacity (W) | 6000 | 9000 | 12000 | 15000 | 18000 | 22000 | |
| Input power (W) | 1360 | 2030 | 2720 | 3400 | 4100 | 5040 | |
| COP (W/W) | 4.41 | 4.43 | 4.41 | 4.41 | 4.39 | 4.37 | |
| Rated cooling (A35/24°C W12/7°C) | Rated cooling capacity (W) | 5000 | 7500 | 9000 | 12000 | 15000 | 18000 |
| Input power (W) | 1760 | 2600 | 3200 | 4200 | 5300 | 6400 | |
| EER (W/W) | 2.84 | 2.88 | 2.81 | 2.86 | 2.83 | 2.81 | |
| Hot water heating (A20/15℃ W15-55℃) | Heating capacity (W) | 7500 | 11200 | 15000 | 18500 | 22500 | 28000 |
| Input power (W) | 1650 | 2470 | 3320 | 4100 | 5020 | 6240 | |
| COP (W/W) | 4.55 | 4.53 | 4.52 | 4.51 | 4.48 | 4.49 | |
| Hot water output (L/h) | 161 | 240 | 321 | 396 | 482 | 600 | |
| SCOP(At 35℃) | 4.73 | 4.74 | 4.74 | 4.73 | 4.73 | 4.72 | |
| Power Supply | 220V, 50-60Hz | 220V, 50-60Hz | 220V, 50-60Hz | 220/380V, 50-60 Hz | 220/380V, 50-60 Hz | 380V, 50-60 Hz | |
| Noise [dB(A)] | 53 | 55 | 55 | 56 | 56 | 57 | |
| Model (Low Temperature) | SX-10GWR/BP | SX-12GWR/BP | SX-16GWR/BP(3) | SX-20GWR/BP(3) | SX-22GWR/BP(3) | SX-30GWR1/BP3 | SX-40GWR1/BP3 | SX-45GWR/BP3 | |
| Rated cooling (A35 W7) | Cooling Capacity (W) | 7200 | 9000 | 10500 | 15000 | 16500 | 20000 | 25000 | 35000 |
| Input Power (W) | 2600 | 3300 | 3800 | 5400 | 6100 | 7300 | 9000 | 9000 | |
| EER | 2.77 | 2.73 | 2.76 | 2.78 | 2.7 | 2.74 | 2.78 | 2.73 | |
| Rated heating (A7 W45) | Heating Capacity (W) | 9000 | 10500 | 15000 | 18000 | 22000 | 28000 | 33000 | 42000 |
| Input Power (W) | 2560 | 2980 | 4300 | 5100 | 6400 | 7800 | 9300 | 12100 | |
| COP | 3.52 | 3.52 | 3.49 | 3.53 | 3.44 | 3.59 | 3.55 | 3.47 | |
| Nominal heating (A-12 W41) | Heating Capacity (W) | 6000 | 7200 | 10000 | 12000 | 14500 | 19600 | 23000 | 28000 |
| Input Power (W) | 2480 | 3040 | 4200 | 4970 | 6260 | 8000 | 9700 | 11800 | |
| COP | 2.42 | 2.37 | 2.38 | 2.41 | 2.32 | 2.45 | 2.37 | 2.37 | |
| Low-temperature heating (A-20 W41) | Heating Capacity (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 19000 | 23000 |
| Input Power (W) | 2470 | 2980 | 4050 | 4920 | 6100 | 7500 | 9600 | 11670 | |
| COP | 2.02 | 2.01 | 1.98 | 2.03 | 1.97 | 2 | 1.98 | 1.97 | |
| Maximum outlet water temperature (°C) | 220V, 50-60Hz | 220V, 50-60Hz | 220/380V, 50-60 Hz | 220/380V, 50-60 Hz | 220/380V, 50-60 Hz | 380V, 50-60 Hz | 380V, 50-60 Hz | 380V, 50-60 Hz | |
| Power Supply | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Noise [dB(A)] | 54 | 54 | 55 | 56 | 56 | 57 | 57 | 59 | |
*Specifications are subject to change with product improvement without prior notice; please contact us for specific details.
Certified Quality
--- CE, GCC, SASO, ISO 9001 & CCC certified—quality you can trust.
Over 30 Years of Expertise
--- Rich experience in designing and manufacturing residential & commercial heat pumps.
Customizable Solutions
--- Flexible OEM & ODM options are available for various market needs.
Global Export Ready
--- Strong logistics and documentation support for smooth overseas shipments.
Efficient After-Sales Service
--- Dedicated support team to assist you before, during, and after delivery.
Energy-Efficient & Durable
--- Built to perform in tropical and desert climates (T1 & T3 ready).
Fast Production & Delivery
--- Streamlined supply chain to ensure on-time shipments.





1. Is KRG a trading company or a manufacturer?
--- We are a professional heat pump manufacturer in China, concerned with the design, development, production, and sales of refrigerators, air conditioners, heat pumps, and other HVAC-R products.
2. What's the lead time for the production?
--- Normally it takes 25-35 days after the receipt of the deposit, and it also depends on the quantity and the customer's requirements.
3. What capacities do you provide for the heat pump units?
--- With full capacity to provide, we can offer heat pumps from 6 kW to 35 kW with optional power supplies. (220V 50/60Hz, 380V 50/60Hz)
4. Do you use the compressors made by yourself?
--- We don't produce the compressors; we use branded compressors directly from dealers of TOSHIBA, GMCC, GREE, PANASONIC, RECHI, HIGHLY, COPELAND, etc.
6. How about the after-sales service?
--- Customer first, service always. KRG provides reliable after-sales support to make sure you’re taken care of long after your purchase.
